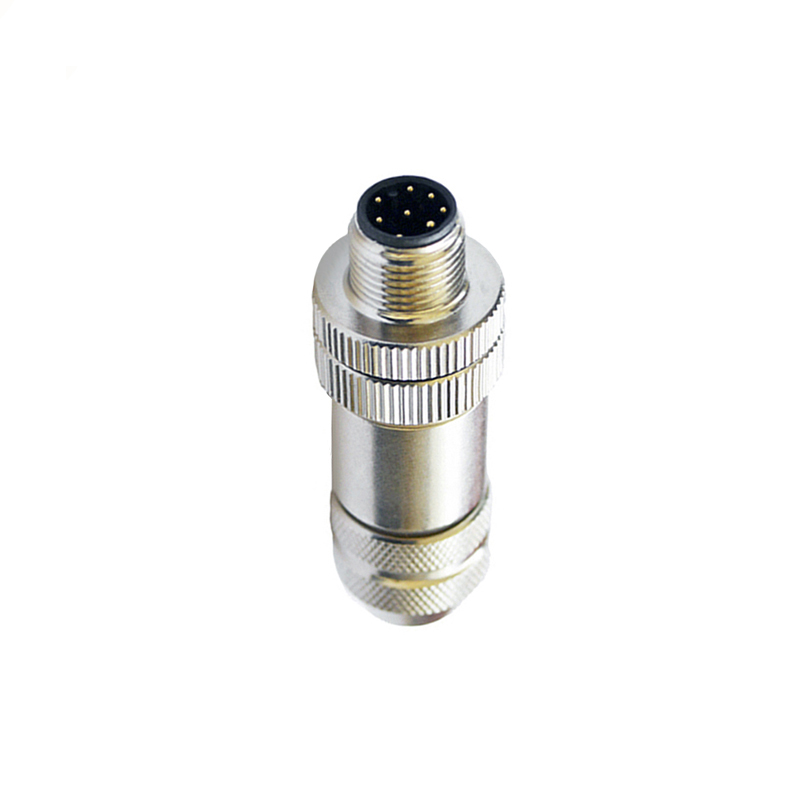

M12 8pins A code male straight metal assembly connector PG7 thread,shielded,brass with nickel plated housing,suitable cable diameter 4.0mm-6.0mm

M12 connectors for assembly provide the best connection technology for every application where standard cable assemblies with over-molded connectors are not an option. INDUS-CONNECTOR offers PG7 hole which is suitable for cable diameter 4.0mm-6.0mm and PG9 hole which is suitable for cable diameter 6.0mm-8.0mm.

Inquire Online

Download

General information

Part no	12ZS37-PG7
Brand	Indus-c
MOQ	100
Place of origin	Shenzhen city, China
Delivery time	3 weeks

General features

Standards	IEC 61076-2-101
Termination	Screw clamp
Degree of protection	IP67
Wire gauge	0.14mm²-0.75mm²
Wire gauge	26AWG-18AWG
PG7 hole suitable cable outer diameter	4.0mm-6.0mm
Mechanical operation	>100 mating cycles
Ambient temperature(operation)	-25°C~+85°C
Customs tariff number	8538900000
Environmental compliance	RoHS, Reac

Electrical parameters

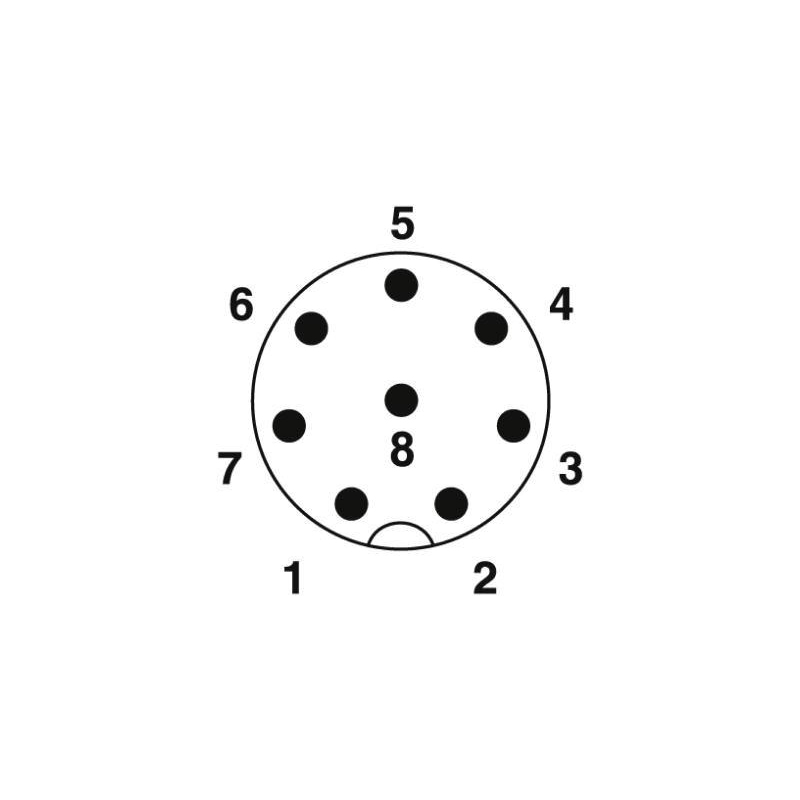

8Pin	30V
Rated voltage	2A
Contact resistance	≤5mΩ
Insulation resistance	≥100MΩ

Material

Connector body	TPU
Pin	Brass with gold plated
Screw	Brass with nickel plated
